PES2Card - 1.03.012 Release Information



  Version 1.03.012 of the PES2Card utility is released on Jan 1, 2002.

    New features in 1.03.012:

  • Added support for EMD file format
  • Support for Atmel 29C040
  • Improved speed for RS323 & USB by introducing Converter port type
  • Changed RGB value for PEC color 0
  • Covered for missing terminator in HUS & VIP files
  • Jump stitches that are normal stitches not marked as jumps anymore
  • Added handling for DST files wit all values set to zero
  • Corrected bug in color handling for PCM files

Freebie
The PEC function on the Properties dialog supports now also the EMD format.
The Properties page doesn't require the card module. The properties page can be found from both read and write card dialogs. As usual, a design can be viewed in color on the properties page.

Download English version of the PES2Card Utility
Download Dutch version of the PES2Card Utility


Version 1.03.011 of the PES2Card utility is released on Nov 20, 2001.

    New features in 1.03.011:

  • Added support for VIP file format
  • Extended #files for D1 to 36 per floppy
  • Support for Atmel 29C010
  • Improved fixation of Viking designs while saving as PEC
  • Fixed bug in rotation of PES files
  • Add Files can now handle a lot more files at once
  • Improved disconnect handling
  • Corrected error for very large jump stitches in PHC files

Freebie
The PEC function on the Properties dialog supports now also the VIP format.
The Properties page doesn't require the card module. The properties page can be found from both read and write card dialogs. As usual, a design can be viewed in color on the properties page.


Version 1.03.010 of the PES2Card utility is released on Oct 5, 2001.

    New features in 1.03.010:

  • Write floppies suitable for use in Ellageo/ULT2001/Galaxy 3000
      Instructions:
    • Press Write Card on main dialog
    • Add designs to the list via Add
    • Select Brother...
    • Press Copy A:
  • support for Atmel AT49F040
  • associate also shows when name is specified
  • new option to show/hide jumpstitches.
  • corrected missing hoopsizes in Dutch version

Version 1.03.009 of the PES2Card utility is released on Aug 30, 2001.

    New features in 1.03.009:

  • Write SHV floppies suitable for use in Designer 1
      Instructions:
    • Press Write Card on main dialog
    • Add designs to the list via Add
    • Select Viking/Husqvarna
    • Press Copy A:
  • Additional formats can be written directly to a card
    • Barudan FMC
    • Barudan FDR
    • Barudan DAT
  • User name in title
  • filenames scrolled to right on Graphics screen (thanks John)
  • helpfile first searched in PES2Card folder
  • print function on Graphics screen (thanks Leah)
  • fixed bug in pen handling
  • deleted null stitches from DST files converting to PEC
  • improved colors in color sequence for HUC files
  • added more manufacturers of 29F400 & 29F800

Freebie
The PEC function on the Properties dialog supports now also the FMC, FDR, DAT format.
The Properties page doesn't require the card module. The properties page can be found from both read and write card dialogs. As usual, a design can be viewed in color on the properties page.


Version 1.03.008 of the PES2Card utility is released on June 28, 2001.

    New features in 1.03.008:

  • MHV browser, see all designs on a D1 design disk in one shot
  • Configuration for Buzz Tools and Embird file associations
  • When a design to be written to a viking card doesn't fit the hoop, it's centered.
  • Improved SHV positioning



Version 1.03.007 of the PES2Card utility is released on May 25, 2001.

    New features in 1.03.007:

  • Support for new USB PES2Card model
  • Set background color for designs
  • Printer now selectable
  • Support for com5-com8
  • Support for SHV files created by Artista
  • Preview in Browse and Add dialogs (module owners only)

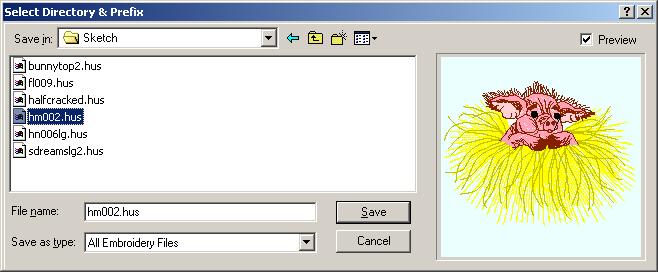

    Preview Snapshot
    Picture by PES2Card, design by Sketch

  • Fixed bug for HUS files who fit 130*180 hoop
  • Card #25 no longer marked as color 0 protected
  • DST files with negative MinX and/or MinY corrected

PC
The new (USB) model of PES2Card allows you to hook up the card module to a USB port on your PC. You will no longer suffer from the lack of ports. You now have a card module capable of handling cards for both BBD and Viking embroidery machines.

Macintosh
The new (USB) model of PES2Card works on a Macintosh. This gives Macintosh users the opportunity to have a single card module that can handle cards for both BBD and Viking embroidery machines.


Version 1.03.006 of the PES2Card utility is released on April 12, 2001.

    New features in 1.03.006:

  • Support for Tajima DSB files
  • Support for E28F004 (new Brother blank card)
  • Support for MX29F800
  • Protection against truncated PEx designs
  • Automatic 90 degrees rotation if that fits the hoop
  • Display improvement for EXP files


    New features in 1.03.005:

  • Support for Macintosh Pfaff PCM and PCS files
  • Download button on About dialog
  • Protection against running PES2Card twice
  • Introduced pen for drawing bitmaps
  • Improvement displaying of SHV, PHC, PEx, XXX, SEW and JEF
  • Display special bitmap for design without stitch data
  • Minor bugfixes for SHV, PHC
  • 130*180 hoop now handled correctly for HUS files
  • Multiple corrections for PES designs from various sources that crash Ellageo/Ult2001
  • Fixed bug where Design area was larger then design page area.

Macintosh
We have managed to make a MAC G3 work with PES2Card. This opens possibilities for G3 users to hook up PES2Card to the G3 and write designs made in PCM or PCS format directly to a Brother or Viking card.

Freebie
The write dialog of the PES2card provides the facility to copy selected designs to a floppy. Combined with the browse feature implemented earlier, it can be used to select a number of designs from various directories and copy them to a floppy. Writing selected designs to a card has always been a function of PES2Card already.



Version 1.03.003 of the PES2Card utility is released on December 22, 2000.

    New features in 1.03.003:

  • Improved com port selection
  • Properties dialog now has previous and next
  • Screen print of properties screen on default printer
  • minor bugfixes for DST, EXP and PCS files

Freebie
Version 1.03.003 of the PES2Card utility offers on the properties page now also a browse facility. The Previous and Next button allow you to browse designs. Another new function is the printing of the Properties page on the default printer which can be done by pressing the Print button.
The Properties page doesn't require the card module. The properties page can be found from both read and write card dialogs. As usual, a design can be viewed in color on the properties page.



    New features in 1.03.002:

  • Graphics facility (only works when card module hooked up)

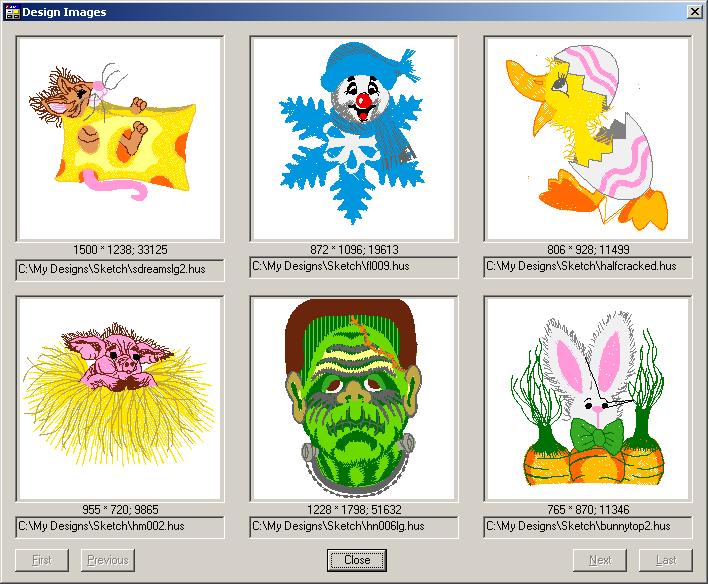

    Graphics Snapshot
    Picture by PES2Card, designs by Sketch

  • Support for JEF files
  • New hoop 110*110
  • Color sequence on properties dialog
  • Dot (.) in directory name was no longer allowed for BBD files
  • Improvement in disk not ready
  • Size + stitches in graphics
  • Additional protection against wrong bitmap in PEC file
  • Covered for PES files with negative coordinates
  • Confirm when reading cards.
  • Cosmetic changes in font and icons
  • Message after PEC file is written
  • Introduced work directory
  • Read/write dialog now pushed above task bar
  • Fixed bug in SEW color table
  • Design no longer aligned on center when design doesn't fit in hoop because of it.
  • Sometimes temporary files were left behind

Freebie
Version 1.03.002 of the PES2Card utility offers on the properties page now also the color sequence. The PEC function on the Properties dialog supports now also the JEF format.
The Properties page doesn't require the card module. The properties page can be found from both read and write card dialogs. As usual, a design can be viewed in color on the properties page.



Version 1.03.001 of the PES2Card utility is released on October 14, 2000.

    New features in 1.03.001:

  • Additional file formats can be written directly to a card
    • PHC - Brother / Baby Lock floppy format
    • SEW - Janome / Elna / Kenmore
    • DST - Tajima
    • XXX - Singer
    • EXP - Melco
  • Support for PE Design/Palette 4.0
  • Support for multi designs (feature of PHC files)
  • Support for new Brother/Baby Lock blank card
    • capacity: 512 Kbyte = 4 Mbit
    • chip: MX29F400T/B
    • read AND write
    • write: requires firmware level 4
    • read: any firmware level
  • Improved hoop warnings and number of hoops (configurable)
  • Support for HY29F040A chip
  • Function to save any compatible design as a PEC file (in properties dialog).
  • Dutch language version

Freebie
Version 1.03.001 of the PES2Card utility offers on the properties page a function to save the selected design as a PEC file. This function also allows you to convert the work you did on the new ULT2001/Ellageo/Galaxie 3000 into one or more PEC files which can then be imported in your favorite design package.
This function doesn't require the card module. The properties page can be found from both read and write card dialogs. As usual, a design can be viewed in color on the properties page.

PHC format
The new embroidery machine Brother Ult2001, Brother Super Galaxie 3000, Baby Lock Ellageo, has the capability to store the design(s) you make on the machine on a floppy. Brother has invented a new file format for those designs (PHC extension). PES2Card will be capable of reading those designs and writing them to a card to be embroidered on either other BBD machines or Viking/Husqvarna machines. Amongst other nice features, the PHC format also provides the capability to combine designs. PES2Card will write these combined files as separate designs to a card.

Brother / Baby Lock blank card
Together with PE Design / Palette version 4 Brother has released a new blank card. This card can only be written by the new Brother card module or the PES2Card card module. The PES2Card card module must have version 4 firmware installed to be able to write to a Brother 512 Kb blank card. Brother and Baby Lock call this card the 4 Meg card. Two units of measurement are available to measure card capacity: one is in bits, the other is in bytes. One byte is 8 bits. Where the user is really interested in, is the capacity in stitches. For most stitches the minimum storage is required. The minimum storage is two bytes. Just for completeness: a floppy holds approximately double the amount of stitches as the new blank card.

Download English version of the PES2Card Utility
Download Dutch version of the PES2Card Utility



Last Modification: April 29, 2002 (c) Copyright 2000-2002, Jos Timmermans
