DesignaKnit required up to the recent development of the Silverlink 4 always a serial port available on your PC.
The Silverlink 4 provides both serial and USB connectivity.
All other cables are only available in serial variant.

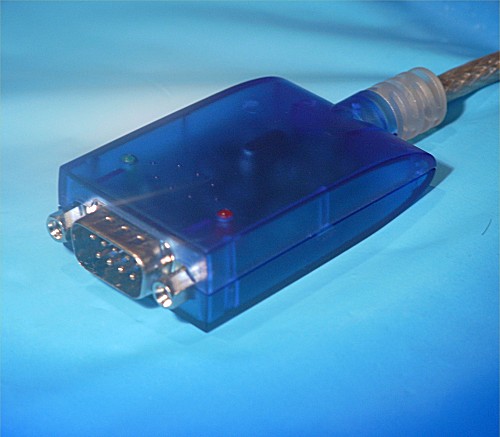

DAKUSB is a device that enables you to use your existing DesignaKnit cable connected to a USB port on your PC.
| DesignaKnit Versions |
|---|
| DesignaKnit 6 (6.11) | DesignaKnit 7 (7.13) |
| Operating Systems |
|---|
| Windows 98 | Windows ME | Windows 2000 | Windows XP | Windows Vista |
Connectivity
| Interface | Connector |
|---|
| Serial | 9 pin male RS232 connector |
| USB | Series A USB connector |
Cables Supported
| Product | Description | Knitting machines |
|---|
| BL1 | Brotherlink 1 | KH940, KH950i |
| BL2 | Brotherlink 2 | KH965i (discontinued, use BL5) |
| BL3 | Brotherlink 3 | PPD |
| BL4 | Brotherlink 4 | KH965, KH270 (interactive only) |
| BL5 | Brotherlink 5 | KH970, KH965i, KH930 |
| | | |
| SL3 | Silverlink 3 | PE1 |
| | | |
| EL1 | E6000 link 1 | E6000 |
| EL2 | E6000 link 2 | E6000 |
| | | |
| SL | Screen link | punch card & non-electronic machines |
|
|
